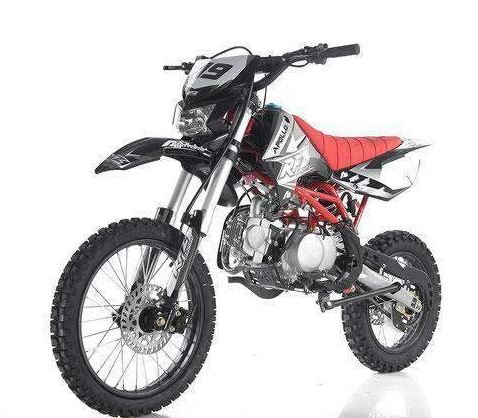

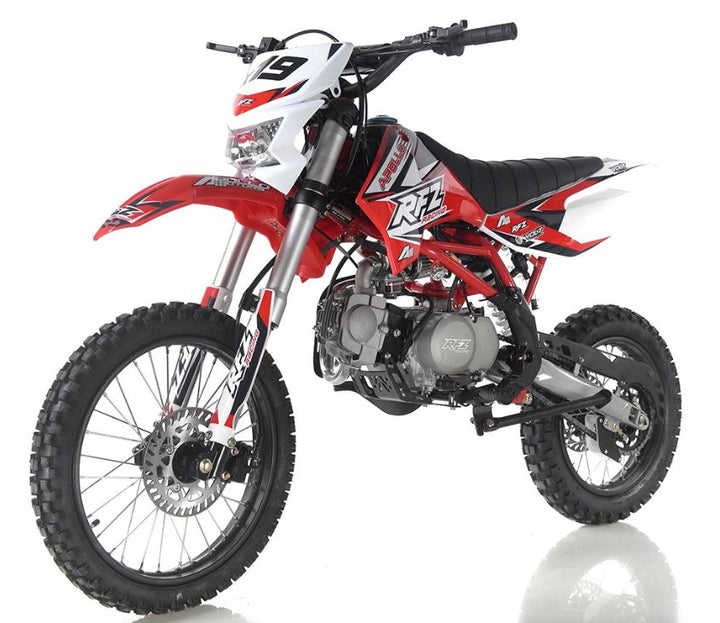

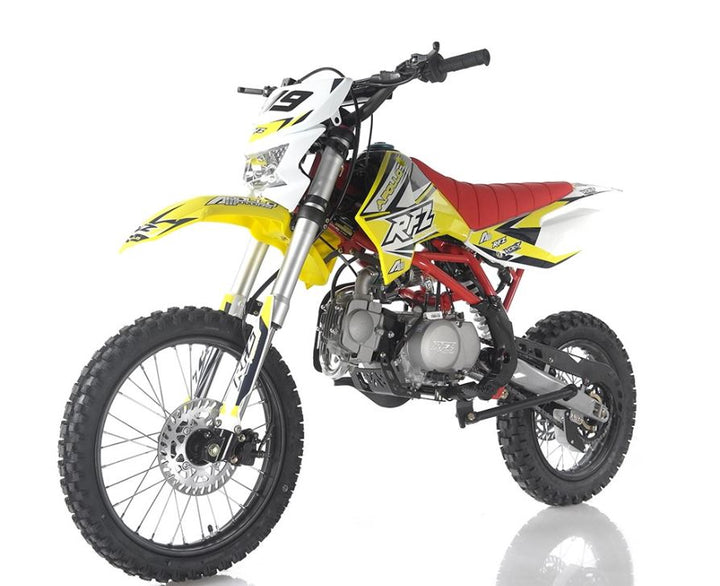

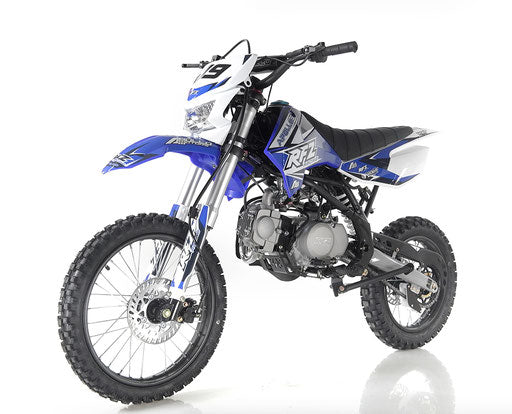

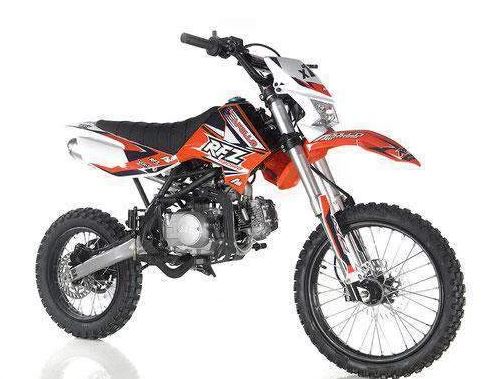

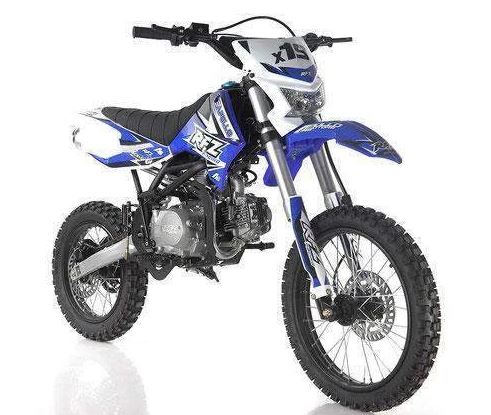

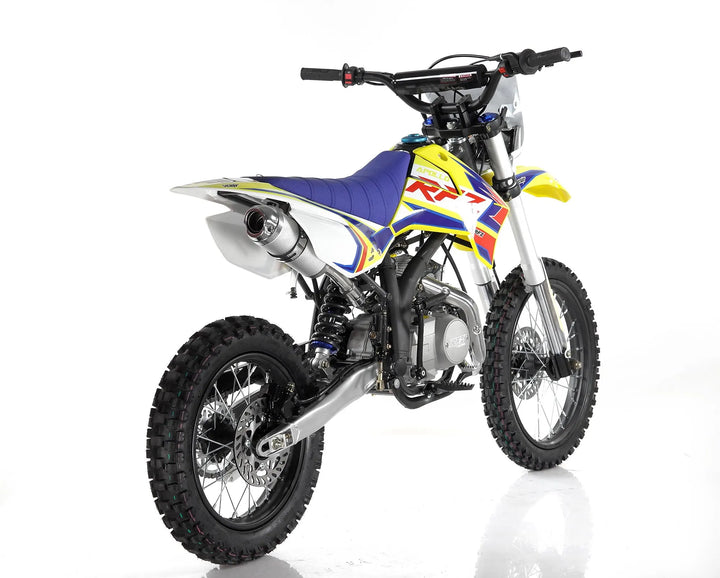

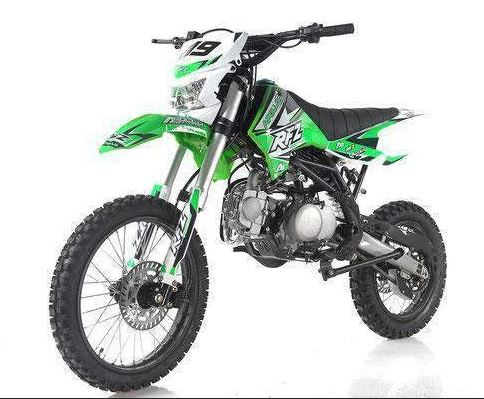

HHH Apollo DB-X19 125cc Dirt Bike (CARB Approved)
HHH premium quality products
The HHH Apollo DB-X19 125cc Dirt Bike is a full-size off-road motorcycle built for riders who want manual clutch control, stronger frame design, and better suspension for trail riding. It uses a 125cc 4-stroke single-cylinder engine with a 4-speed manual transmission, supported by adjustable gas shocks and hydraulic disc brakes.
This model is CARB approved, so it meets California emission rules and can be sold to CA buyers.
Key Features
- 125cc 4-stroke single-cylinder engine
- 4-speed manual transmission
- Manual clutch control
- Kick-start system
- One-piece steel tubular frame
- Adjustable gas suspension (front & rear)
- Hydraulic disc brakes front and rear
- 17"/14" wheel setup
- Full-size dirt bike design
- CARB approved (California compliant)
- Headlight included
- Trail and off-road use
125cc Engine and Manual Transmission
The DB-X19 runs a 125cc air-cooled engine designed for steady power and simple maintenance.
It produces:
- 8.7 HP
- 9.0 Nm torque at 6000 RPM
The 4-speed manual gearbox allows riders to control:
- Acceleration
- Gear shifting
- Trail speed
- Riding technique
Kick start keeps the system simple and reliable.
| Engine and Drivetrain | Specifications |
|---|---|
| Engine Type | 125cc 4-Stroke |
| Cooling System | Air-Cooled |
| Transmission | 4-Speed Manual |
| Start System | Kick Start |
| Ignition | CDI |
| Max Power | 8.7 HP |
| Fuel Tank | 3 Liters |
| Drive Type | Chain Drive |
Full-Size Frame and Riding Comfort
The DB-X19 uses a one-piece steel tubular frame, giving strong structure and stability for off-road riding.
Key dimensions:
- Seat height: 32.25 inches
- Wheelbase: 45.61 inches
- Ground clearance: 12.79 inches
This setup helps with:
- Rider balance
- Stability on trails
- Comfortable riding position
- Better control on rough terrain
Recommended rider height:
- 5 ft 2 in and above
Adjustable Suspension and Trail Handling
The suspension system includes upgraded adjustable gas shocks, improving:
- Shock absorption
- Ride comfort
- Terrain handling
- Stability on bumps
Wheel setup:
- Front tire: 60/100-17
- Rear tire: 80/100-14
This size offers:
- Good traction
- Controlled handling
- Balanced off-road ride
Hydraulic Disc Brakes and Safety
The bike comes with:
- Front hydraulic disc brake
- Rear hydraulic disc brake
This provides:
- Strong stopping power
- Better control on dirt
- Safer trail riding
| Chassis and Dimensions | Details |
|---|---|
| Front Brake | Hydraulic Disc |
| Rear Brake | Hydraulic Disc |
| Seat Height | 32.25 Inches |
| Ground Clearance | 12.79 Inches |
| Wheelbase | 45.61 Inches |
| Max Load | 220 lbs |
| Weight | 180 lbs |
| Frame | Steel Tubular |
CARB Approved for California Riders
This model is CARB compliant, meaning:
- Meets California emission standards
- Allowed for sale in California
- Lower emission output
Built for Beginner to Intermediate Riders
The HHH Apollo DB-X19 is ideal for riders who want:
- Full-size dirt bike feel
- Manual clutch riding
- Stronger 125cc performance
- Adjustable suspension
- Trail riding capability
Best for:
- Teen riders
- Beginner adults
- Trail riding
- Recreational off-road use
Available colors:
- Red
- Blue
- Yellow
- Black
- Green
Assembly, Shipping, and Warranty
The bike ships 70% assembled inside a metal crate.
Before riding:
- Assembly required
- Technician setup recommended
Important details:
- 30-day parts warranty only
- Labor not covered
- Returns not covered
- Lift gate included
- Residential delivery included
- Shipping insurance included
- Delivery appointment required
This model is a strong option for riders who want a CARB-approved 125cc dirt bike with manual control, adjustable suspension, and full-size riding comfort.
| Color |
Red, Green, Yellow, Black, Blue, Orange |
|---|
